Agent Workspace

Cairn ships a built-in stateful coding agent and a terminal workspace for external CLI agents. Both are accessible from the Agent view (⌘5) and integrate directly with your board tasks and notes.

Two agent modes

The Agent view supports two ways of working:

Cairn Agent

The Cairn Agent is a stateful multi-turn coding agent built directly into the app. It uses the same AI endpoint you configure in Settings → AI & Chat — no extra setup. The agent runs a tool-call loop: it can read and write files, run shell commands, search your codebase, and read and update your Cairn board and notes. All tool activity streams to the chat as live chips, and the session history persists across view switches.

Starting a Cairn Agent session

There are two ways to start a session:

• From a task card — open the card detail panel on the Kanban board, click Spawn Agent, and choose Cairn Agent in the modal. The prompt is pre-filled from the card title and description.
• Ad-hoc — open the Agent view and click the + button in the session tab bar. Select Cairn Agent, enter a prompt and the code directory to work in, and confirm.

Before spawning, set a code directory on the project Overview page — this is the root folder the agent reads and writes. If it hasn't been set, the spawn modal will prompt you to enter one.

Tool chips

Every tool call the agent makes appears as a chip inside the message bubble. While the tool is running, the chip shows a spinner and the tool label. When it completes, the chip updates to a check or cross, and write-tool chips show an expandable output block with the result. Read-only tools (file reads, searches, list calls) suppress their output to keep the chat clean.

Chips for Cairn write tools (ensure_note, create_task, update_task, etc.) include a clickable reference link — clicking it navigates to the created or updated item in the Notes or Board view.

Subagents

The Cairn Agent can spawn focused child agents for deep sub-tasks using the spawn_subagent tool. Each subagent runs its own tool-call loop, streams tokens and tool chips, and returns a result to the parent. Subagents appear as collapsible inline blocks in the parent chat, with their own context usage ring. The parent ring only reflects parent-step usage; subagent usage is tracked independently.

Context usage ring & compaction

A small ring in the agent chat header shows how much of the model's context window the current session is using. The ring fills as the conversation grows and turns red when usage is high. The context window size is set in Settings → AI & Chat → Context window — presets are 8k, 32k, 128k, and 200k tokens.

When usage reaches 80% the agent automatically compacts the context. It summarises the oldest portion of the conversation with a background LLM call, injects the summary back as a structured context block, and keeps the 6 most recent turns verbatim. Compaction runs without interrupting the current turn — the status bar shows "Compacting context…" while it is in flight. The full conversation history is always preserved in session storage; only what is sent to the model is trimmed.

Type /compact in the chat input to trigger compaction on demand at any time — useful before starting a large task to free up context space.

Automatic retry

Transient API errors — rate limits, overloaded responses, and server errors — are retried automatically without ending the session. The agent waits with exponential backoff (2 s, 4 s, 8 s) between attempts and shows a countdown in the status bar: "Transient error — retrying (1/3) in 8s…". Clicking the stop button cancels any in-progress retry immediately.

Mandatory workflow

The Cairn Agent follows a built-in project workflow on every session:

1. Orient — reads the active project context and moves the linked task card to In Progress
2. Document as you go — uses ensure_note to create or update a session note with findings and decisions (idempotent — no duplicate notes)
3. Capture out-of-scope tasks — anything discovered but not actioned is added as a board task for later
4. Wrap up — writes a session summary note and moves the task card to Review or Done

Available tools

All tools cap their output and append a pagination hint when truncated — the agent can use offset/limit parameters to page through large results.

Skills

Skills are reusable instruction sets — stored as SKILL.md files — that teach the Cairn Agent specialised workflows without bloating the system prompt. Metadata (name and description) is always visible to the agent; the full instructions are only loaded when the agent determines the skill is relevant to the current task.

How the agent uses skills

1. At session start, Cairn scans for skill files and injects a compact <available_skills> list into the system prompt — name and one-line description only.
2. When the agent recognises a skill matches the task, it calls the skill tool with the skill name.
3. The full SKILL.md body is injected into context. Bundled resources (docs, templates, scripts) in the skill directory are listed and accessible via the read tool.

Where to put skill files

Cairn walks from the code directory up to the git root at session start, checking each ancestor for the following subdirectories (first match per skill name wins):

Because Cairn walks up to the git root, skills placed at the repository root are always discovered even when the code directory is set to a subdirectory such as packages/web/.

SKILL.md format

Each skill is a directory containing a SKILL.md file with a YAML frontmatter header followed by the instruction body in plain Markdown:

---
name: git-release          # required · kebab-case · matches directory name
description: "Draft release notes and bump the version."  # required · shown to agent always
license: MIT               # optional
compatibility: cairn       # optional (cairn | opencode | cline)
metadata:
  audience: maintainers    # optional string map
---

## What I do

Walk through `CHANGELOG.md`, propose a semver bump, and draft
the release notes in the project's established style.

## Steps
1. Run `git log --oneline` since the last tag.
2. Group commits by type …

The directory name must match the name field and follow kebab-case (^[a-z0-9]+(-[a-z0-9]+)*$, 1–64 characters). You can co-locate supporting files alongside SKILL.md:

.cairn/skills/git-release/
  SKILL.md
  docs/release-checklist.md
  templates/release-notes.md
  scripts/bump-version.sh

The agent is shown the relative paths of files in docs/, templates/, and scripts/ subdirectories and can read them via the read tool.

Previewing discovered skills

Go to Settings → Coding Agents → Skills & System Prompt to see which skills were discovered for your workspace, their file paths, and the full assembled system prompt the agent will receive. A mode toggle lets you preview both execute and plan mode variants. The system prompt can be copied to the clipboard from this panel.

Compatibility

Cairn uses the same SKILL.md convention as OpenCode and Cline. Skills authored for either of those agents work in Cairn without modification — same directory layout, same frontmatter schema, same skill tool invocation contract.

External agent workspace

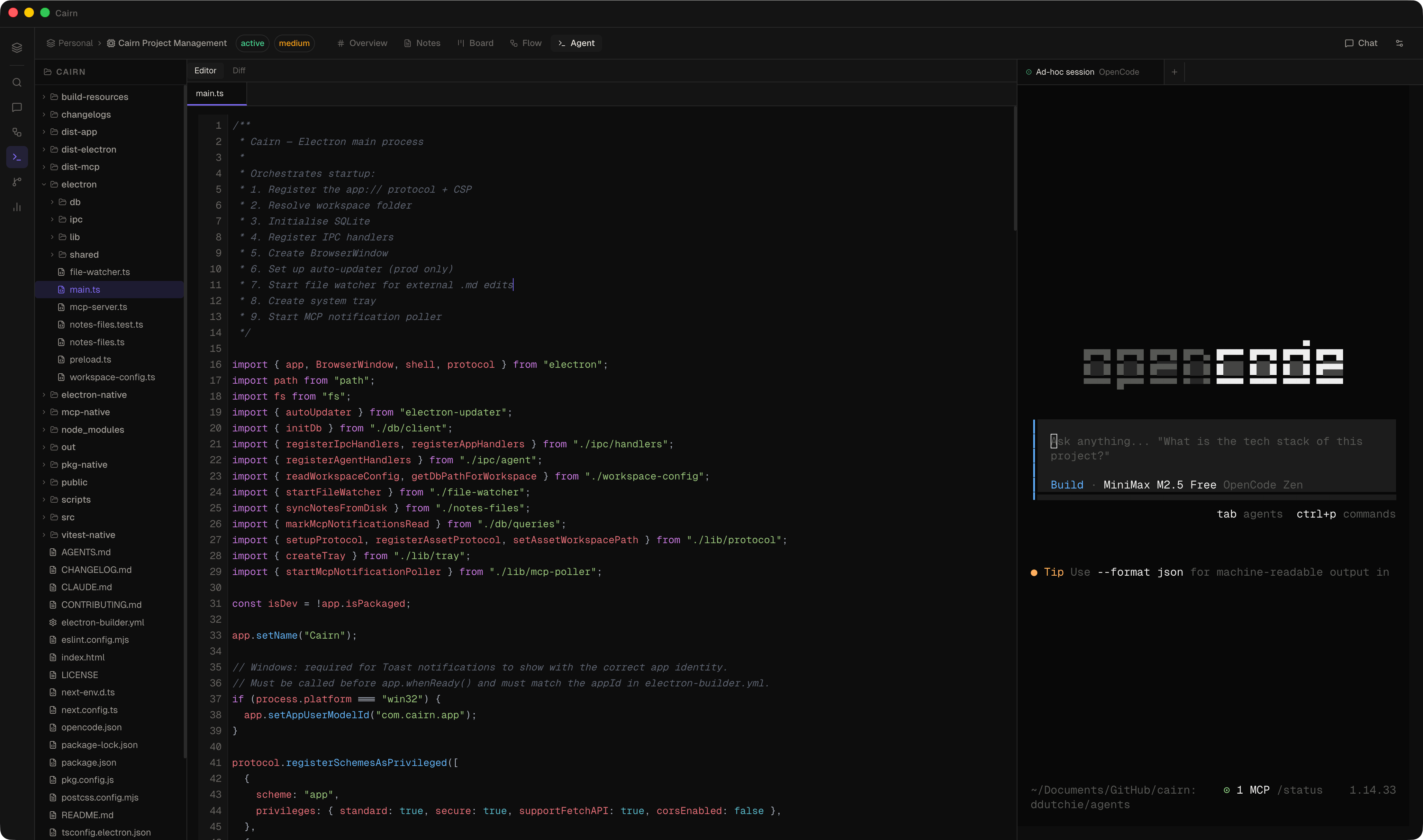

The external agent workspace is a three-pane layout for running CLI tools in a live terminal:

• File tree — a lazy-expanding browser of your project's code directory
• Editor / Diff — a tabbed code editor and git diff viewer
• Terminal — tabbed xterm.js sessions, one per agent run

Panes resize by dragging the dividers. Sessions survive navigation — switching to Notes or Board and back does not kill a running process.

Setting up a code directory

Each project has a code directory — the root folder the file tree and agent sessions operate in. Set it from the project Overview page: click the terminal-icon row below the project header, type or paste the path, and press Enter. On macOS and Windows you can also click Browse to pick a folder.

The code directory is validated before any agent spawns. All file I/O from the agent workspace is confined to paths within registered code directories — the app will not read or write outside them.

Registering a coding agent

Go to Settings → Coding Agents and click Add agent. Each agent has four fields:

Prompt delivery and the {prompt} placeholder

The Args field controls how the spawn-time prompt reaches the agent binary. Use the {prompt} placeholder anywhere in the args string — it is replaced with the prompt text at spawn time.

Prompts are delivered via exec sh -c '…' with single-quote escaping — safe for any length, newlines, colons, or special characters.

Spawning a session

There are two ways to start a session:

• From a task card — open the card detail panel on the Kanban board and click Spawn Agent. The prompt is pre-filled from the card title and description. Pick an agent, edit the prompt if needed, and confirm.
• Ad-hoc — open the Agent view and click the + button in the terminal tab bar, or click New session in the empty state. Type a prompt or leave it blank for an interactive TUI session.

On spawn, a new terminal tab opens immediately and the agent process starts. The tab shows the agent name and a live status dot — green while running, grey on exit.

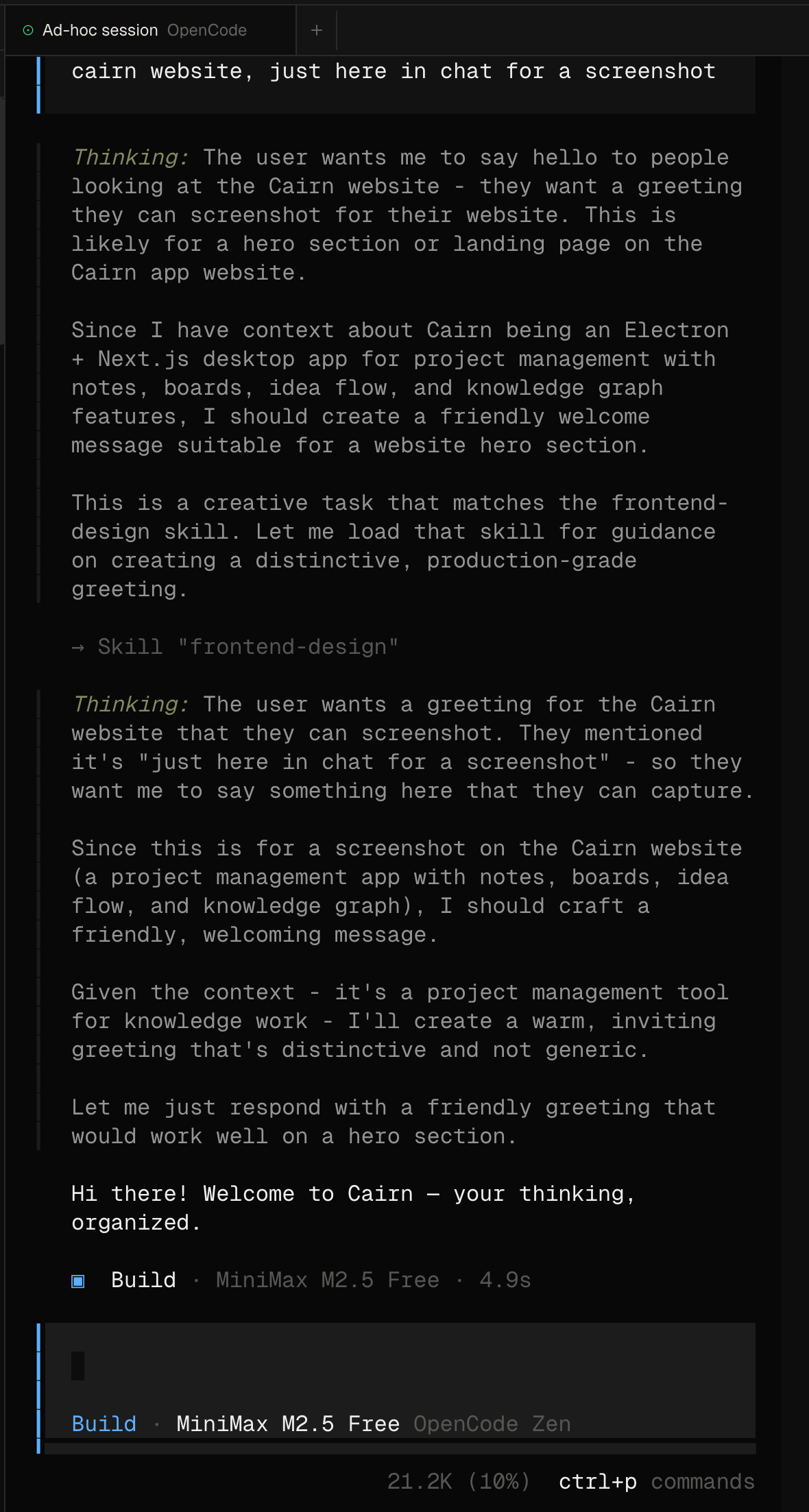

Terminal

Each session runs in a full xterm.js terminal. You can type directly into the terminal to interact with the agent or send follow-up instructions. The terminal preserves full scroll history — switch tabs and back without losing output.

Closing a tab sends a kill signal to the process and removes it. The terminal font size tracks your Cairn font scale setting automatically.

File tree

The left pane shows the code directory as a lazily-expanding tree. Folders expand on click; files open in the editor. Dotfiles and hidden entries are filtered out. The tree is scoped to the registered code directory — it cannot navigate above it. Press ⌘⇧F to activate a filename search input at the top of the file tree.

Editor

The centre pane hosts a multi-file CodeMirror 6 editor. Click any file in the tree to open it in a tab. Multiple files can be open simultaneously — switching tabs is instant with no reload, and scroll position and undo history are preserved per file.

• Syntax highlighting for TypeScript, JavaScript, Python, Rust, Go, and 15+ other languages — auto-detected from the file extension
• Dirty-state dot on the tab when a file has unsaved changes
• ⌘S / Ctrl+S to save — writes directly to disk
• Markdown files show a Preview toggle that renders the file in read mode
• Images (PNG, JPG, GIF, WebP, SVG, and more) are displayed inline rather than as text

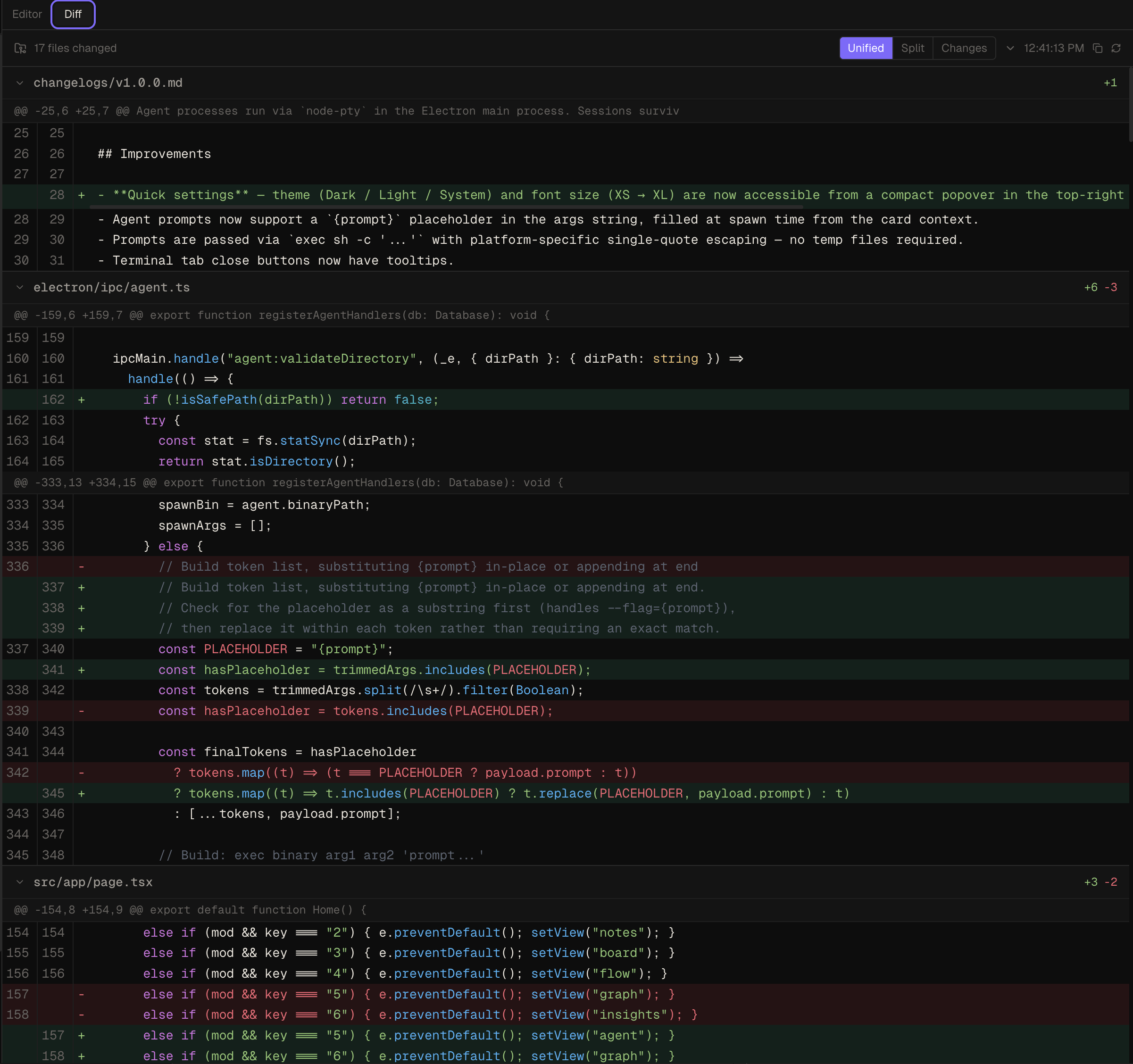

Git diff viewer

The Diff tab in the editor pane polls git diff HEAD every 5 seconds and shows all uncommitted changes in the code directory, including untracked files.

Three view modes are available:

• Unified — standard unified diff with context, additions, and deletions
• Split — side-by-side old and new columns, paired by hunk
• Changes — unified diff with context lines hidden; only added and deleted lines

File sections are collapsible. A Copy patch button copies the raw diff to the clipboard. A manual Refresh button is available in the toolbar alongside the last-refreshed timestamp.

Keyboard shortcuts

• ⌘5 / Ctrl+5 — open Agent view
• ⌘S / Ctrl+S — save the active file in the editor
• ⌘F / Ctrl+F — find/replace panel in the editor (when editor is focused)
• ⌘⇧F / Ctrl+⇧F — toggle filename search in the file tree
